PRESSURE DIES
Serrated Pressure Die
“It’s working great!
The serrations are only making a very slight impression, but are holding the tube well.
Your formula for the serrations is a good one. "
Jim Bozza
Process Engineer
Flexible Metal, Inc.
Pressure Dies come in different diameters and lengths, and Tube Works is able to customize them to fit your machine.

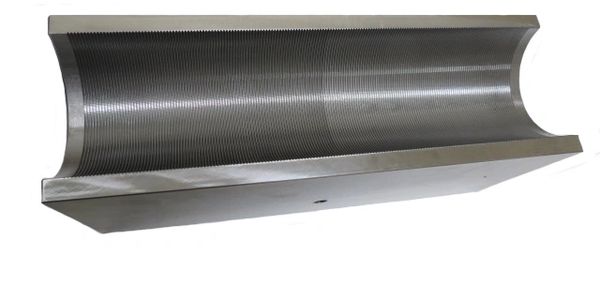

The Pressure Die shown on the left utilizes serrations to help push the tube into the Bend Die, which can be useful when bending tubes with a center line radius approaching the diameter of the tube, thin wall tubes and difficult alloys such as stainless steel.
If you need help with your application give us a call!
